Flow control (13)

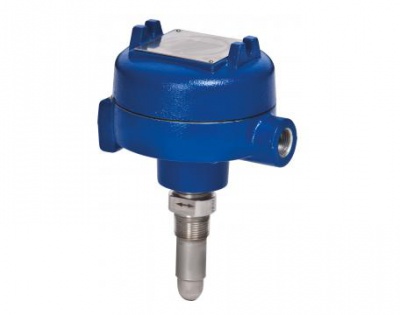

Thermatel® TG1/TG2 provides a two-wire, intrinsically safe circuit between the probe and remote din rail enclosure. The flow/level/interface switches provide a new level of performance and reliability not found in previous switches. Continuous diagnostics with fault indication, narrow hysteresis and fast response time make the TG1/TG2 the latest in thermal dispersion switch technology.

The Eclipse® Model 706 high performance transmitter is a loop-powered, 24 VDC level transmitter that is based upon the proven technology of guided wave radar (GWR). Encompassing a number of significant engineering accomplishments, this leading-edge level transmitter is designed to provide measurement performance well beyond that of many of the more traditional technologies.

The Enhanced ECLIPSE Model 705 guided wave radar transmitter is available with a 304 stainless steel housing designed specifically for use in hygienic applications. This instrument meets the needs and requirements for the wetted and non-wetted materials, process connections and surface finishes of hygienic industries.

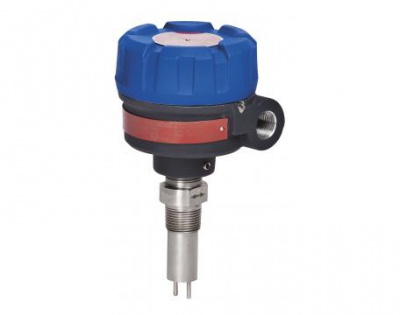

The Thermatel^® Model TD1/TD2 switch is utilized in flow, level and interface applications.  The TD1/TD2 is popular for pump protection, specifically low flow detection with the unique spherical tip design, to prevent pumps from running dry.  Continuous diagnostics with fault indication, temperature compensation and fast response time make the TD1/TD2 the latest in thermal dispersion technology.

Echotel® Model 355 is a loop-powered, non-contact-type ultrasonic transmitter that performs liquid level, volume or open channel flow measurement. HART® communications are offered with a PACTware™ PC program for remote configuration and troubleshooting.

The Eclipse® Model 700 Transmitter is a loop-powered, 24 VDC level transmitter that is based upon the proven and accepted technology of Guided Wave Radar (GWR).
Encompassing a number of significant engineering accomplishments, this leading-edge level transmitter is designed to provide measurement performance well beyond that of many of the more traditional technologies.

The Echotel® Model 335 is a four-wire, integral mount, ultrasonic non-contact transmitter for liquid level, volume, and open channel flow measurement. Featuring advanced digital signal processing and a powerful transducer, this versatile transmitter provides exceptional measurement performance in a wide variety of applications.

The Enhanced Eclipse® Model 705 is a 24 VDC loop-powered transmitter based upon the revolutionary guided wave radar (GWR) technology. This single transmitter can be used with all probe types and offers enhanced reliability, as demonstrated by a Safe Failure Fraction of 91%.

The Thermatel® Model TA2 is an easy-to-use, economical, continuous gas flow meter that is often utilized to manage energy costs or to meet environmental regulations in a variety of industries.  TA2 total cost of ownership is reduced through ease of installation, calibration verification in the field and reduced maintenance with no moving parts or ports to plug.  Since the measurement is based on heat transfer, the TA2 has reliable performance at low gas flows and pressures where other technologies have difficulties.

The Pulsar® Model R86 non-contact radar level transmitter is the latest generation of Magnetrol loop-powered, 24 VDC, liquid level transmitters. It has a longer measurement range, circular polarization, advanced diagnostics and is easier to use than most loop-powered radar transmitters.

Radar has been part of the level measurement market for more than thirty years. The early designs used in tank gauging were heavy, expensive, power-hungry and complex. Advancements in radar circuitry have evolved the modern radar transmitter so that now it is light, inexpensive, loop-powered and easy to use. The R82 is the logical extension of that evolution.

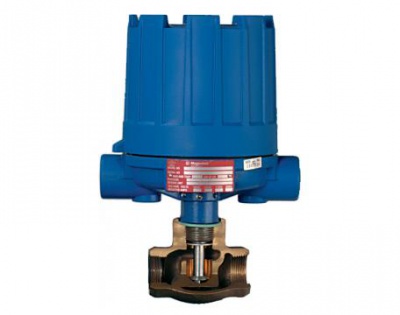

Magnetrol® flow switches are highly reliable flow control solutions utilized to sense the presence or absence of flow in horizontal pipelines. Disc-actuated Model F50 switches are in-line type used for sensing clean liquids in 2 inch or smaller line sizes.

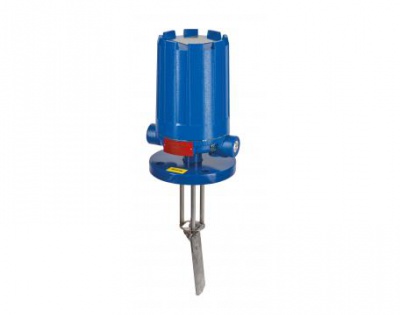

Magnetrol® flow switches are highly reliable flow control solutions utilized to sense the presence or absence of flow in horizontal pipelines. Model F10 switches are vane actuated for use on gas or liquid flow applications in 2 inch or larger line sizes.
