Level control (39)

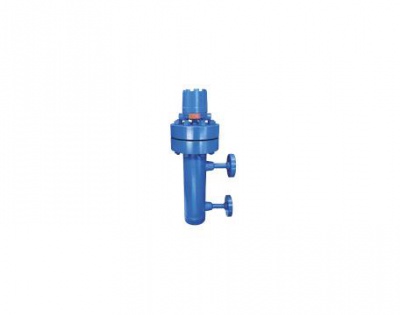

High Pressure Liquid Level Switches are displacer actuated units, utilizing a single switch mechanism for level alarm or control functions. These units are designed for service pressures up to 5000 psig (345 bar) and liquids with specific gravities of 0.40 and above.

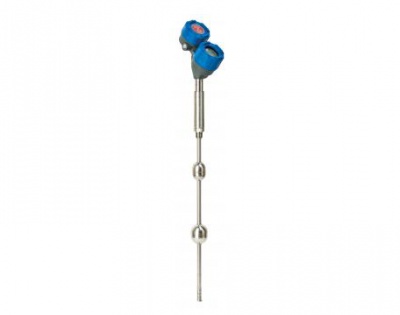

The Jupiter® JM4 liquid level transmitter is a loop-powered 24 VDC liquid-level transmitter and is available as a direct insertion transmitter or as an external mounted transmitter onto a Magnetic Level Indicator. It relies on the position of a magnetic float which is designed precisely for the liquid to be measured.  This high-accuracy device can be designed for liquid level and/or liquid-liquid interface measurement.

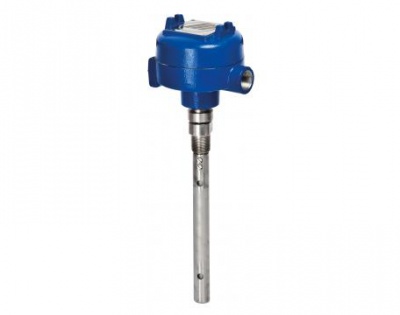

The Kotron® Model 082 transmitter is one of the most cost-effective level transmitters available today. Compact in size, it employs state-of-the-art surface mount technology in an encapsulated module for a stable, accurate measurement.

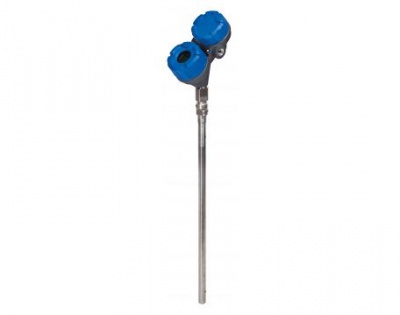

The Kotron® Model 805 Smart Transmitter is a loop-powered, 24 VDC, liquid-level transmitter based on proven RF Capacitance technology. Encompassing a number of significant engineering accomplishments, this high performance RF level transmitter is designed to provide reliable measurement performance well beyond that of competitive units.

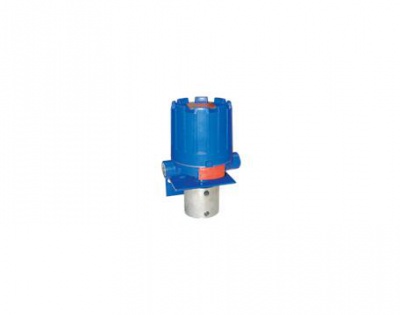

The Model FLS Flood Level Switch is a float operated, liquid level control designed for bracket mounting at floor level sumps or troughs.

The proven Magnetrol magnetic coupling is employed to convert float movement to actuate a single snap-action dry contact switch mechanism. The switch is factory set for ¾" level differential for off-on control, alarm or safety shutdown service.

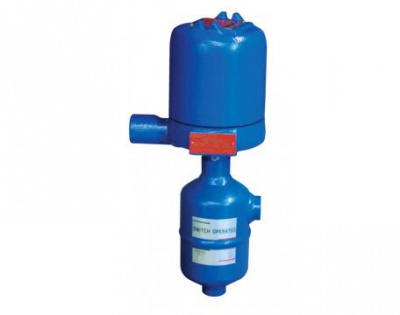

The Model J52 Refrigerant Level Switches are float actuated units designed for use on liquids with 0.60 specific gravity and above.

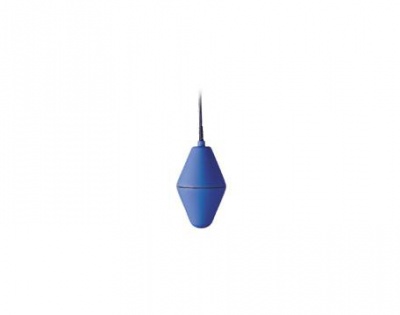

The T10 float level switch offers industrial and municipal users a low-cost solution to wide differential level applications. The moving ballast causes a flipping motion of the float to provide positive switching action even under turbulent conditions. Recommended for use in either clean or dirty liquids, it is ideal for use in sump control and wet well applications.

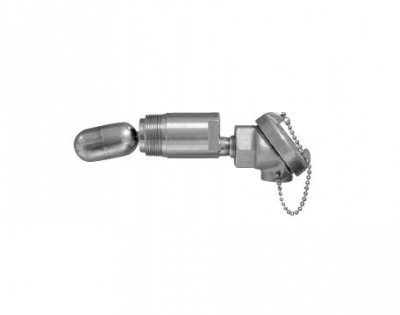

The TK1 liquid level switches are float-actuated devices designed for horizontal mounting in a tank or process vessel through threaded or flanged connections. This low-cost switch is ideal for OEM applications where a single point high or low level alarm is desired

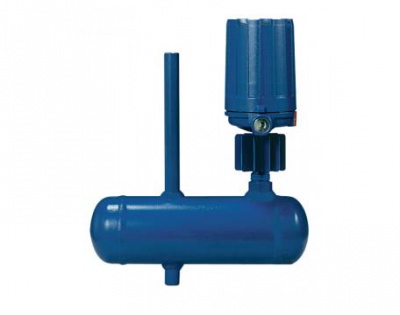

The B40 external cage type level switch is a float-actuated control specifically designed and constructed for high pressure, high temperature service conditions such as boilers. It is available in rugged industrial or ASME B31.1 construction.

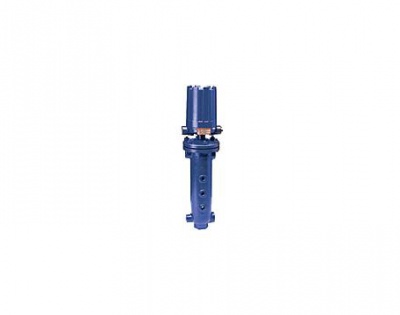

Models C24/C25, boiler, and water column liquid level switches are single- or multi-switch units that offer versatility and reliable operation in a variety of applications. Available with up to three switch mechanisms for level alarm, control, and shutdown functions, the boiler and water column controls are designed for use in steam boiler applications while the Models C24 and C25 are for general use.

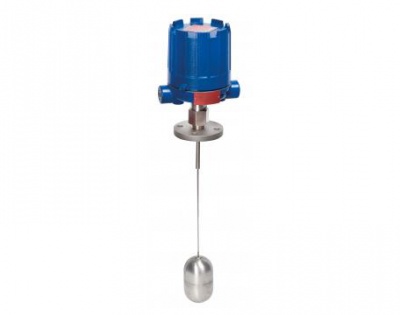

T20 units are simple, reliable float switches, designed for top mounting into tanks or vessels. T20 units utilize a single switch mechanism and float. It can be used for virtually any type of open or closed process or storage vessel, with either threaded or flanged type mounting, and actuating depths of up to 48 inches (1219 mm).

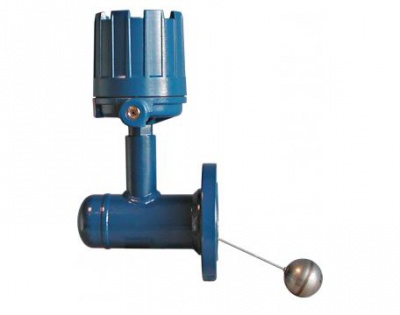

Magnetrol® side-mounting float switches mount horizontally to any tank or vessel through a threaded or flanged pipe connection. Standard models are normally equipped with a single switch mechanism for high or low level alarm or control applications. Tandem models, with two switch mechanisms, are available for two-stage applications.

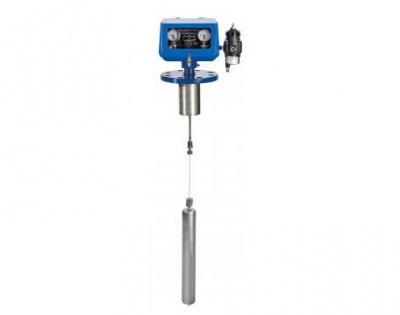

Modulevel® Pneumatic and APM liquid level control / transmitter are displacement actuated level sensors that provide output signals in direct proportion to changes in liquid level. Simple modular design and the MAGNETROL proven magnetic coupling make MODULEVEL controls versatile, highly stable, vibration resistant and adaptable to extremes in temperature and pressure.

Radar has been part of the level measurement market for more than thirty years. The early designs used in tank gauging were heavy, expensive, power-hungry and complex. Advancements in radar circuitry have evolved the modern radar transmitter so that now it is light, inexpensive, loop-powered and easy to use. The R82 is the logical extension of that evolution.
